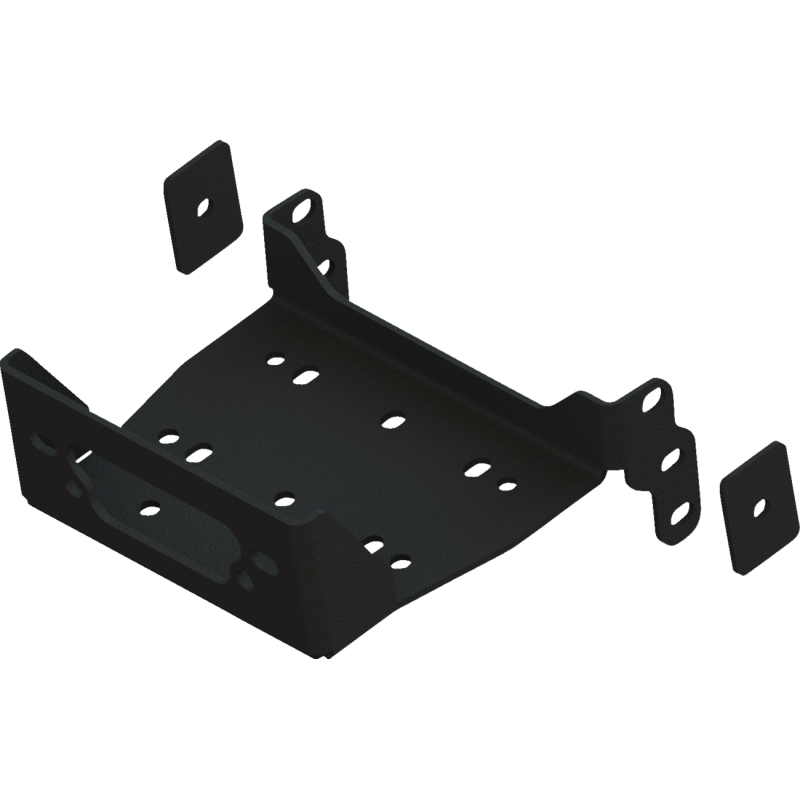

KFI Winch Mount for Yanmar UTV Longhorn 17-23

$95.95

Requires drilling 1-2 holes.

  • Constructed of 3/16" steel
  • Metal bead blasted and powder coated for best possible finish prep and durability
  • Very easy to install
  • Complete installation instructions and mounting hardware included
  • 100% made in USA
  • Roller fairlead and winch not included.
  • Designed to work with the following winches:
  • KFI on VIKING / Viking VI (Bull / Longhorn): ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
  • KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
  • KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN on WOLVERINE X2 and X4: AXON 35 / AXON 35-S / AXON 45RC
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40 (require the drilling of two holes)
  • WARN: Vantage 2000-3000 lb
  • WARN: Vantage 4000lb (requires the drilling of two holes)
  • WARN: ProVantage 2500-3500 lb
  • WARN: ProVantage 4500lbs (requires the drilling of two holes)
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV
  • SUPERWINCH: LT2000 / UT3000 / Terra 45 / Terra 4500 (SR) / LT4000UTV (require drilling of one-two holes)
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
  • CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND: 2-hole winches require drilling of holes
  • BADLAND: standard winches
  • BADLAND: wide winches require drilling of two holes
  • CHAMPION: 2-hole winches, standard winches
  • CHAMPION: WIDE winches require drilling of two holes
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER: KT4000 / KT4000C require the drilling of two holes
  • KEEPER CORP. TRAKKER: KT2000 requires the drilling of one holes and roller fairlead with a 4.875" bolt pattern
  • SMITTYBILT: XRC 2.0 requires drilling of one hole and roller fairlead with a 4.875" bolt pattern
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000 4-hole standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
  • Traveller: 1078088 / 1078302 require roller fairlead with a 4.875" bolt pattern
  • Possibly many others with standard mounting pattern of 4-hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole wide 3.00" x 6.60" bolt pattern, or 2-hole 3.10” with rollers that are 4.875” bolt pattern
Quantity:
- +
  • Vendor:

    KFI PRODUCTS

  • SKU:

    18599

  • Model #:

    101515

  • UPC:

    748252654892

  • Weight:

    8.25 lb

  • Available:

    In Stock

Guranteed safe checkout:
Visa Mastercard Amex Paypal Diners Club Discover
Vehicle Fitment
2016 Yamaha Viking 700 4x4
2016 Yamaha Viking 700 EPS 4x4
2019 Yamaha Wolverine X2 850 R-Spec 4x4
2019 Yamaha Wolverine X2 850 R-Spec SE 4x4
2025 Yamaha YXC700 Viking VI EPS
2024 Yamaha YXC700 Viking VI EPS
2023 Yamaha YXC700 Viking VI EPS
2022 Yamaha YXC700 Viking VI EPS
2021 Yamaha YXC700 Viking VI EPS
2020 Yamaha YXC700 Viking VI EPS
2018 Yamaha YXE70 Wolverine
2017 Yamaha YXE70 Wolverine
2016 Yamaha YXE70 Wolverine
2017 Yamaha YXE70 Wolverine EPS
2017 Yamaha YXE70 Wolverine R-Spec
2016 Yamaha YXE70 Wolverine R-Spec
2016 Yamaha YXE70 Wolverine R-Spec EPS
2017 Yamaha YXE70 Wolverine R-Spec EPS SE
2016 Yamaha YXE70 Wolverine R-Spec EPS SE
2019 Yamaha YXE85 Wolverine X2
2019 Yamaha YXF85 Wolverine X4
2018 Yamaha YXF85 Wolverine X4
2019 Yamaha YXF85 Wolverine X4 SE
2018 Yamaha YXF85 Wolverine X4 SE
2025 Yamaha YXM700 Viking EPS
2024 Yamaha YXM700 Viking EPS
2023 Yamaha YXM700 Viking EPS with Suntop
2022 Yamaha YXM700 Viking EPS with Suntop
2021 Yamaha YXM700 Viking EPS with Suntop
2020 Yamaha YXM700 Viking EPS with Suntop
2019 Yamaha YXM700 Viking EPS with Suntop
2018 Yamaha YXM700 Viking EPS with Suntop
2015 Yamaha YXM700 Viking FI 4x4
2014 Yamaha YXM700 Viking FI 4x4
2015 Yamaha YXM700 Viking FI 4x4 EPS
2014 Yamaha YXM700 Viking FI 4x4 EPS
2017 Yamaha YXM700 Viking FI 4x4 EPS with Suntop
2017 Yamaha YXM700 Viking FI 4x4 with Suntop
2017 Yamaha YXM700 Viking VI
2016 Yamaha YXM700 Viking VI
2015 Yamaha YXM700 Viking VI
2015 Yamaha YXM700 Viking VI EPS
2020 Yamaha YXM700 Viking with Suntop
2019 Yamaha YXM700 Viking with Suntop
2018 Yamaha YXM700 Viking with Suntop
