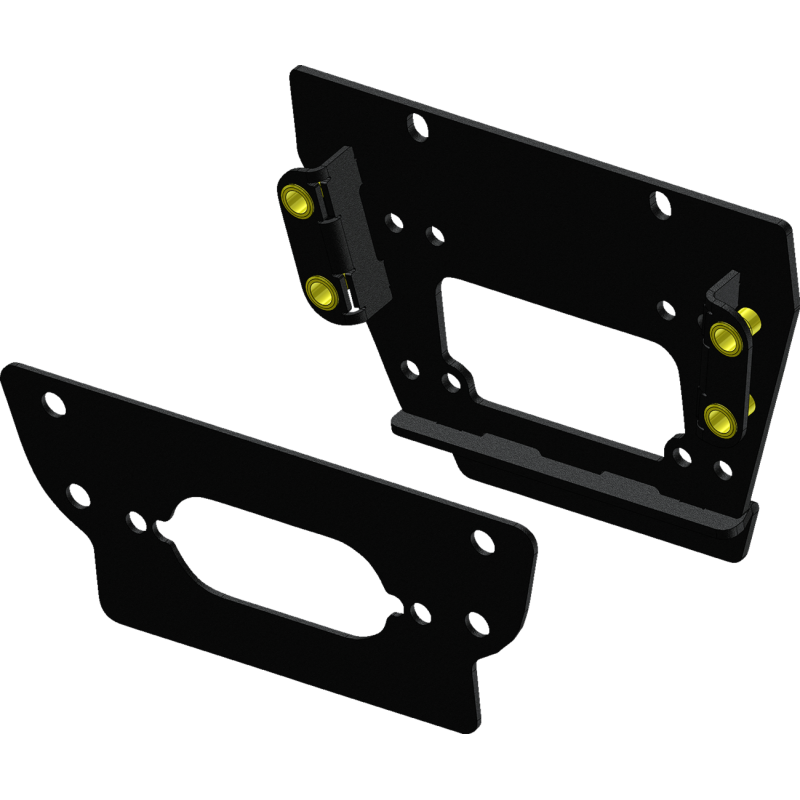

KFI Winch Mount 4505-1001

$111.95

Winch mount. Requires wire extension kit (Part #4505-1105).

Plate constructed of 3/16" steel
Fairlead bracket constructed of 10 gauge steel
Metal bead blasted before powder coated for the best possible finish prep and durability
Very easy to install
Complete installation instructions and mounting hardware included
100% made in the USA
Roller fairlead and winch not included.
2-Hole winch will require purchase of additional part #4505-1069
Mount designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
WARN: Vantage 4000 lb / Provantage 4500 lb (will use WIDE fairlead)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 2500 / Powermax 2500 and 3500
BADLAND, CHAMPION: 2-hole winches requires additional part #4505-1069
BADLAND, CHAMPION: standard and wide winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875" bolt pattern and part #4505-1069
SMITTYBILT: XRC 2.0 requires additional part #4505-1069
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302 require roller fairlead with a 4.875" bolt pattern
QUADBOSS: RP25 / RP35
Possibly many others with standard mounting pattern of 4-hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole wide 3.00" 6.60" bolt pattern with rollers that are 6.600"/6.000" pattern, or 2-hole (requires additional part #4505-1069) 3.10" with rollers that are 4.875 bolt pattern
