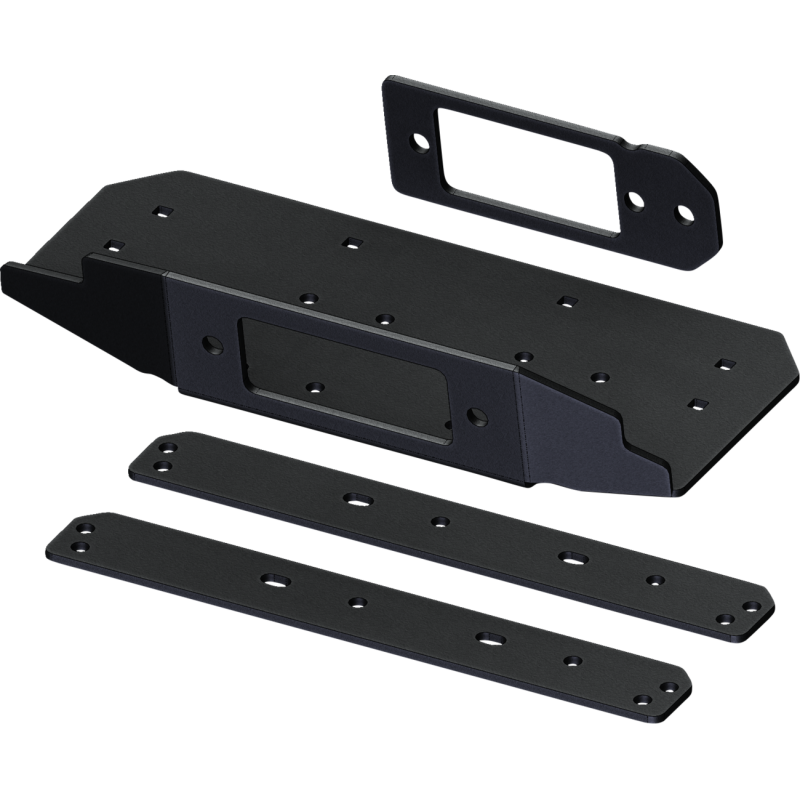

KFI Winch Mount 4505-1123

Requires drilling 1-2 holes.

• Constructed of 3/16” steel
• Metal bead blasted before they are powder coated for the best possible finish prep for durability
• Complete installation instructions included
• All mounting hardware included
• Roller fairlead and winch not included
• Upper winch mount for UTV OEM bumper
• 100% made in the USA
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb / Vantage 4000lbs / Provantage 4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Powermax 2500, 3500
• BADLAND, CHAMPION: Standard Winches, WIDE Winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 Hardcore Series with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302 requires roller fairlead with a 4.875" bolt pattern
• 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
• Possibly many others with standard mounting patterns such as 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) and 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
• QUADBOSS: RP25 / RP35
