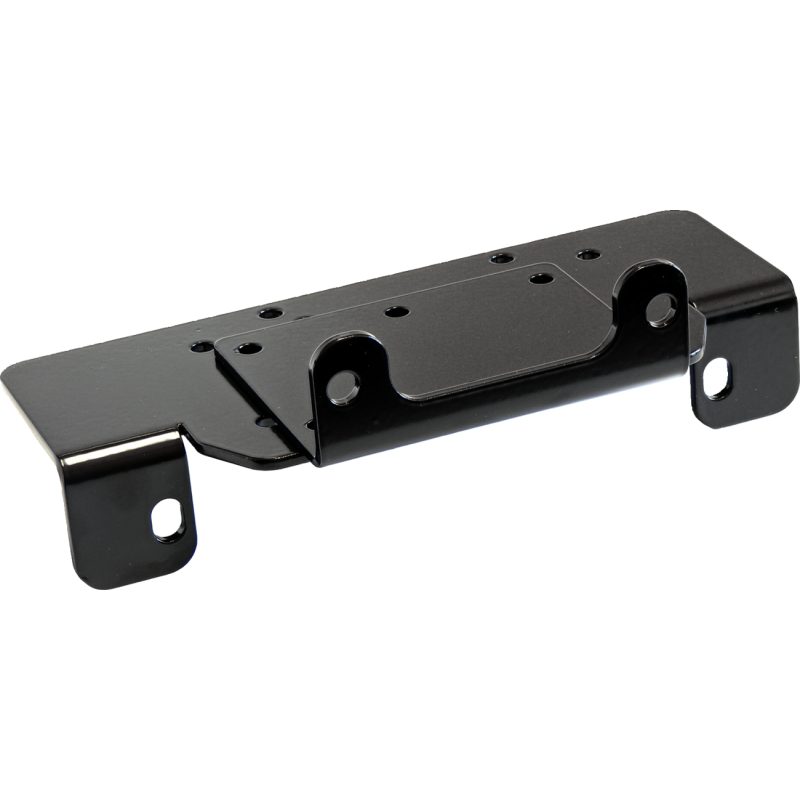

KFI Winch Mount 4505-1151

$91.95

Winch mount for select models. Check winch compatibility.

Constructed of 3/16" steel
Includes standard roller fairlead bracket
Mounts are metal bead blasted before being powder-coated for best possible finish and durability
Very easy to install
Complete installation instructions and hardware included
Roller fairlead and winch not included.
100% made in the USA
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
WARN: Vantage 4000 lbs / ProVantage 4500 lbs
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S (requires standard fairlead bracket #4505-1086)
WARN: VRX 45 / VRX 45-S (requires Wide fairlead bracket #4505-1073)
WARN: AXON 35 / AXON 35-S / AXON 45RC (requires Standard fairlead bracket #4505-1086)
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S (requires Wide fairlead bracket #4505-1073)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / LT2000 / UT3000
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT (requires roller fairlead with a 4.875" bolt pattern such as #4505-0953)
SMITTYBILT: XRC 2.0 (requires roller fairlead with a 4.875" bolt pattern such as #505-0953)
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000 4-hole standard (3.00" x 4.875" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
Traveller: 1078311
Traveller: 1078088 / 1078302 (requires roller fairlead with a 4.875" bolt pattern)
Possibly many others such as 4-hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole wide 3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern, or 2-hole 3.10" with rollers that are 4.875" bolt pattern
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: 2-hole, standard, and wide winches
CHAMPION: 2-hole, ATV 4-hole, UTV 4-hole, and wide winches
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875" bolt pattern)
