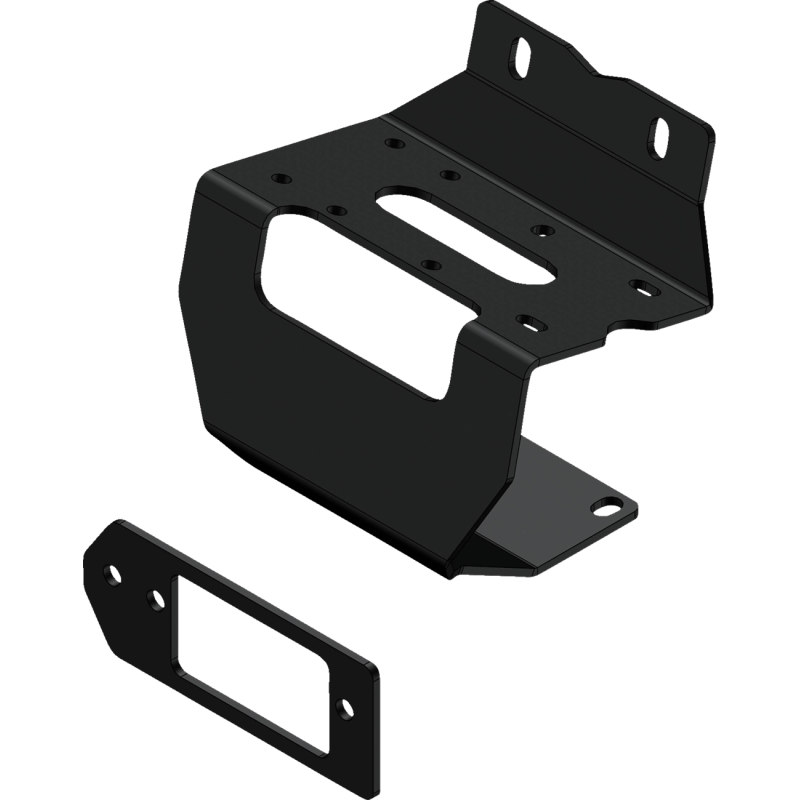

KFI Winch Mount 4505-1232

Winch mount for UTV models.

• Powder-coated black and bead blasted for durability
• Includes:
• Winch mount
• Fairlead adapter mount
• 3/8"-16 x 1.00 hex flange bolt
• 3/8"-16 x hex flange nylock nut
• Made in the USA
• Constructed of 3/16" steel
• Very easy to install with instructions and mounting hardware included
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S / A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / AXON 35 / AXON 35-S / AXON 45RC
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S / RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40 / Vantage 2000-4000lb / ProVantage 2500-4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• BADLAND: 2-hole, standard, and wide winches
• BADLAND: APEX 5500 (long and short drum)
• CHAMPION: 2-hole, ATV 4-hole, UTV 4-hole, or wide winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875" bolt pattern
• SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875" bolt pattern
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 with 4-hole standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• TRAVELLER: 1078311
• TRAVELLER: 1078088 / 1078302 require roller fairlead with a 4.875" bolt pattern
• QUADBOSS: RP25 / RP35
• Possibly others with the standard moutning pattern 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) or 4-hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) or 2-hole (3.10" with rollers that are 4.875" bolt pattern)
