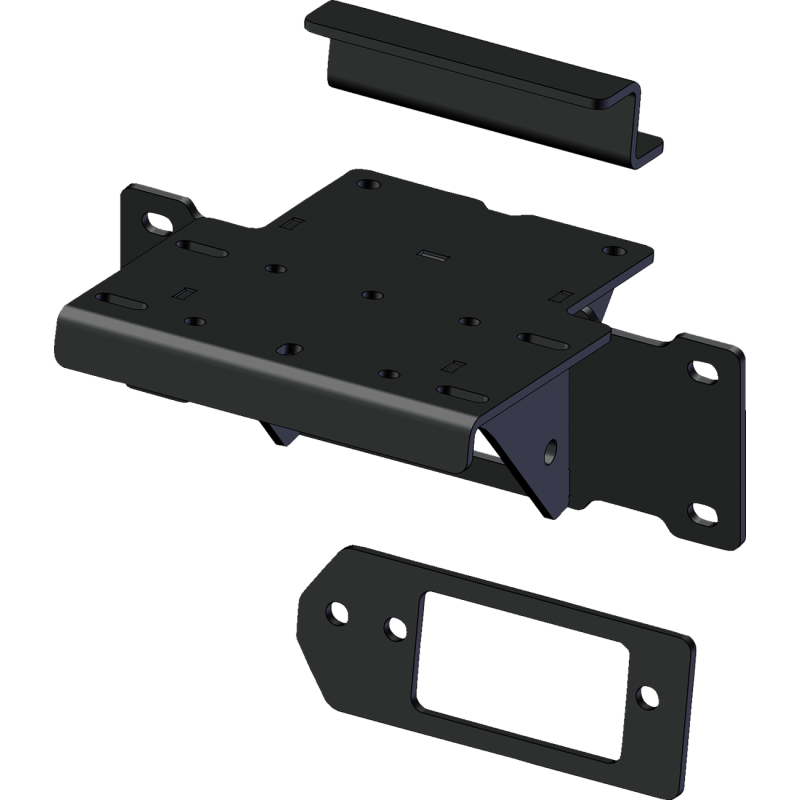

KFI Winch Mount 4505-1142

Winch mount for select models. Check winch compatibility.

100% made in USA
Powder-coated black for supreme durability
Designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45-R2w / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
WARN (requires standard fairlead bracket #4505-1086): VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / AXON 35 / AXON 35-S / AXON 45RC
WARN (requires wide fairlead bracket #4505-1073): VRX 45 / VRX 45-S / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
WARN: Vantage 4000 lbs / ProVantage 4500 lbs
May possibly fit other winches such as:
4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-hole (3.10" with rollers that are 4.875" bolt pattern)
Will NOT work with Kawasaki XR models with the following winches:
KFI: U45w-R2 / SE45w-R2 / AS-50wx
SUPERWINCH: TERRA 45 / LT4000UTV
SMITTYBUILT: XCR3.0 / XCR4.0
SUPERATV: WN-4500 / WN-6000 / 4500-W-N / WIN 00-001 / WIN 00-012 wide
MILEMARKER: PE5000 wide
BRONCO: 2500 / 3500 STD
BADLANDS: 2-hole, wide, or Apex 550 winches
CHAMPION: 2-hole or wide winches
TRAKKER: KT2000 / KT4000(C)
VENOM: 4500 / 5000 wide
TRAVELLER: 4500 wide
EAGLE: 2-hole 2000LBS
MASTERLOCK: 1500LB / 2955AT
